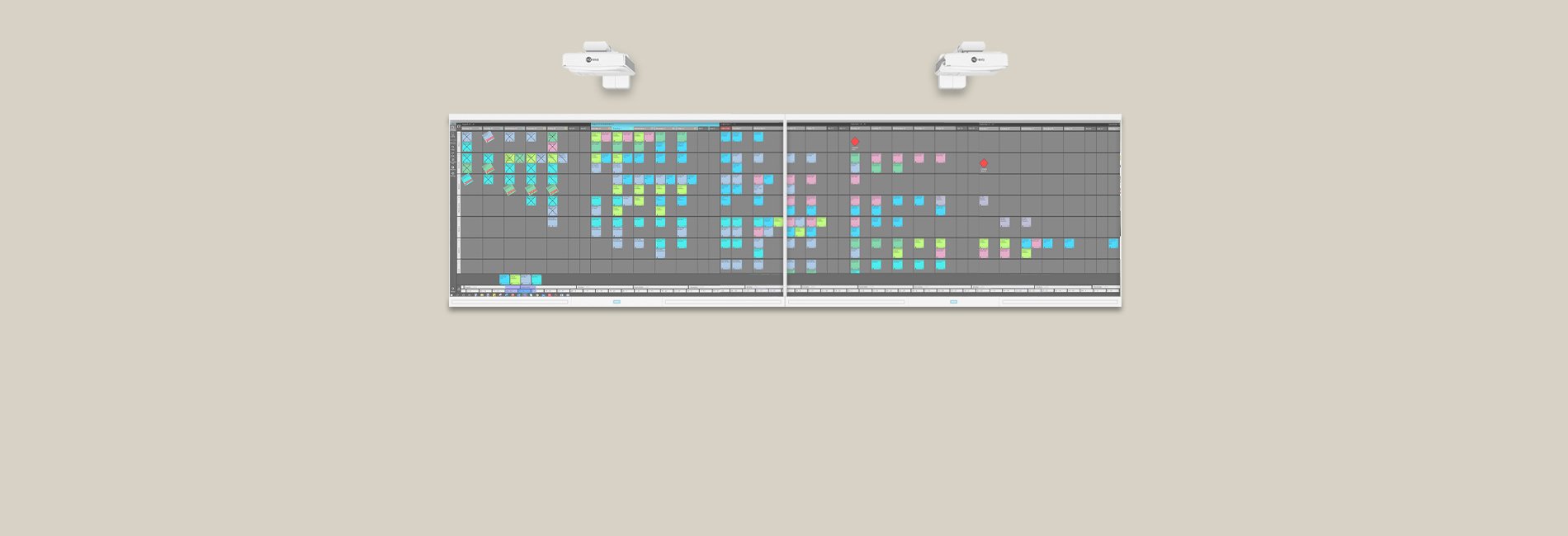

Nialli Visual Planner on large interactive wall

Your wall turned digital

Complete your Nialli solution with a multitouch collaboration wall that takes the traditional big wall experience into the digital world. The Nureva® Wall works with our suite of design and planning tools so you can keep what you like about your paper processes while adding the digital flexibility you need.

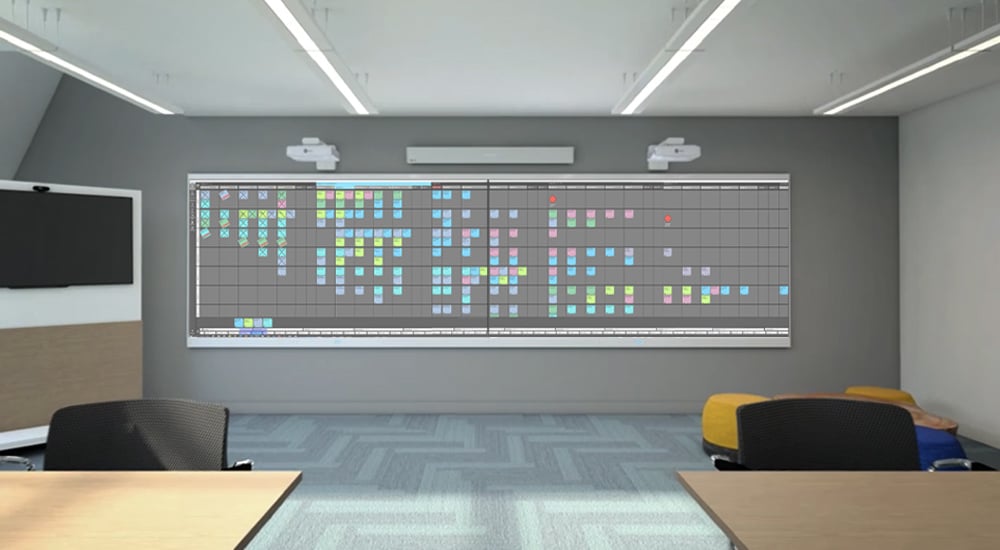

Brilliant touch technology

Bring everyone together with an interactive wall that maximizes participation with 40-point multitouch. It combines ultra-short-throw projection with the same capacitive touch technology found in the latest smartphones to give everyone the experience they’ve come to expect. Team members can add and edit content on the wall at the same time, supporting multiple simultaneous conversations.

Nialli Visual Planner on large interactive wall
40 points of touch per dual system

points of touch per dual system

3600 lumens for optimal brightness

lumens for optimal brightness

25,000 expected hours of projector life

expected hours of projector life

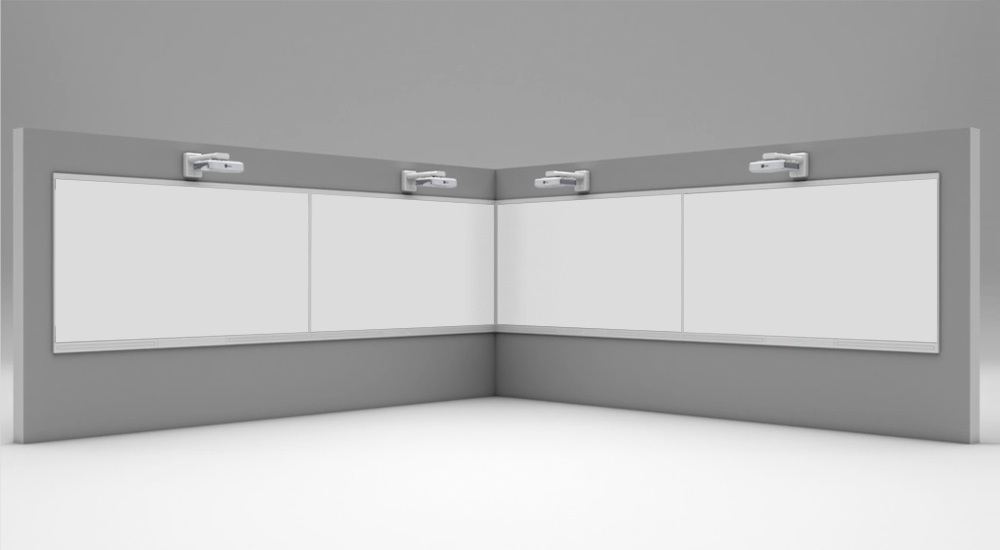

Flexible configurations

One size never fits all – and with the Nureva Wall, it doesn’t have to. Create a collaborative workspace tailored to your project’s needs. Configurations can be as small as 7' 6" (2.29 m) wide or as large as 60' (18.29 m) wide. They can span the length of a Big Room, be placed in the corner of a jobsite trailer or wrap around an entire room for immersive visual collaboration.

Interactive wall configurations for Nialli Visual Planner
Easy installation icon

Easy installation

Install the Nureva Wall on almost any type of wall. An interlocking feature makes combining multiple walls easy.
Automated start-up icon

Automated start-up

Start collaboration sessions quickly with a configurable presence-detection sensor that turns on the system.
Sleek design icon

Sleek design

The surface’s low-profile bezel and slim design blend into your space, keeping the focus on your project, not technology.
  • Tech specifications
  • Computer requirements

What’s included

Nureva SSI full-HD projector
Nureva wall mount
Nureva 100" diagonal (2.54 m) touch panel
USB A-B cable
+5V DC power supply with country-specific adapters

Projector details

Resolution 1920 x 1016
Aspect ratio 17:9
Image size 7' 6" x 47" (2.29 x 1.19 m) (100" or 2.54 m diagonal)
Brightness 3600 ANSI lumens
Light source Solid state illumination (SSI)
Room control Crestron® ready
Dimensions 15.1" x 3.4" x 12.1" (38.3 x 8.6 x 30.7 cm)
Net weight 15.2 lb. (6.9 kg)

Adjustable wall mount

Material Steel + aluminum + plastic
Adjustment knob Pitch/Roll/Yaw +/- 10˚
Maximum weight supported 33 lb. (15 kg)
Wall-mount tilt +/- 5˚
Projector tilt +/- 10˚
Horizontal adjustment 2.3" (6 cm)
Dimensions 6.9" x 8.3" (17.6 x 21.1 cm)
Net weight 8.8 lb. (4.0 kg)

Touch panel functionality

Power button Wake/home/sleep
Presence detection Wake/sleep; 104˚ H; 90˚ V
Multipanel connectivity Up to three touch panels reporting to one PC
Dimensions 89.3" x 51.4" x 0.9" (226.6 x 130.4 x 2.4 cm)
Net weight 75 lb. (34 kg)

Touch panel performance

Touch technology Projected capacitive touch
Touch points (multitouch) 20 points per 100" panel
Dry-erase compatible Yes

Warranty

3-year limited – projector and touch panel
1-year limited – wall mount
30 days – accessories

Part number

WM408i – Nureva Wall system with full HD projector and 100" touch panel

What’s included

Image resolution 1920 x 1016
Processor x86 or x64 minimum Intel® i5 or higher
RAM 8 GB minimum
Video memory 2 GB per touch panel
Graphics processor Direct® 9.0 compatible or better
Video ports HDMI or DisplayPort x1
USB 2.0 high-speed port x2

Use your interactive wall with any Nialli product

01206-nialli-home-visual-planner-icon-500x300-03

Nialli Visual Planner

Choose the digital pull planning tool that’s intuitive by design, for contractors and trades alike.

Learn more
01206-nialli-home-design-planner-icon-500x300-03

Nialli Design Planner

Visualize conversations while working together to identify constraints and head off potential delays.

Learn more
01206-nialli-home-workspace-icon-500x300-03

Nialli Workspace

Share drawings, documents and more, whether your team is in person or distributed.

Learn more

Questions? Let’s talk.

Wondering if the Nureva Wall is right for you? Our team can fill you in on the details and answer any questions you might have. We can also walk you through exactly how Nialli products and the interactive wall work together.

Connect with us
